Pirmak Machinery was founded in 2000 and produces filling and sticker (label)machines for pharmaceutical, water, bucket, bottle rinsing, paint, fruit juice, milk, honey etc. industries. While keeping quality as priority to provide customer satisfaction and meet requests, Pirmak personnel provides exceptional service.

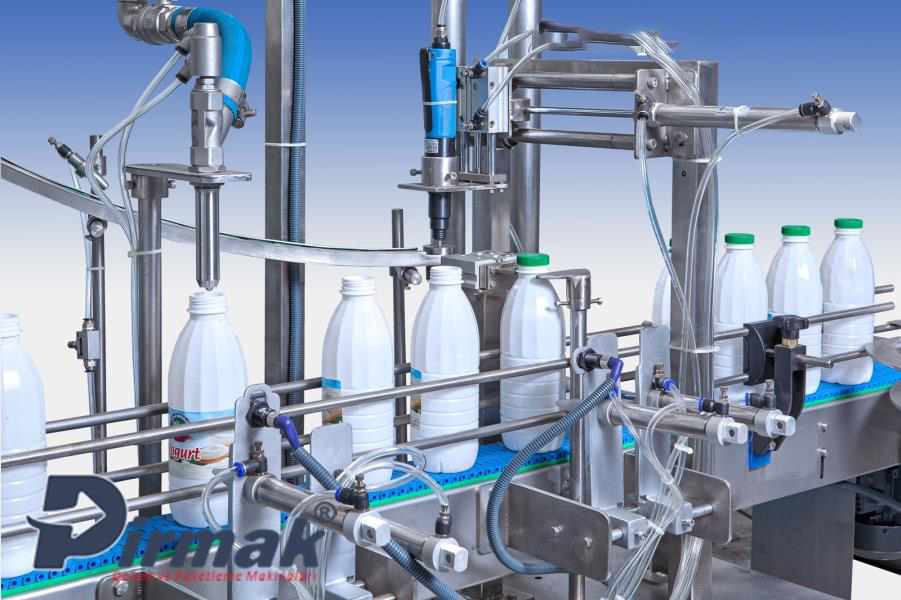

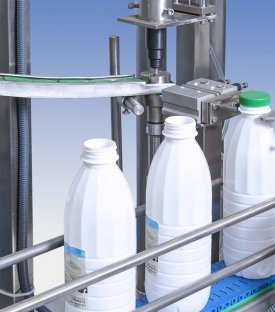

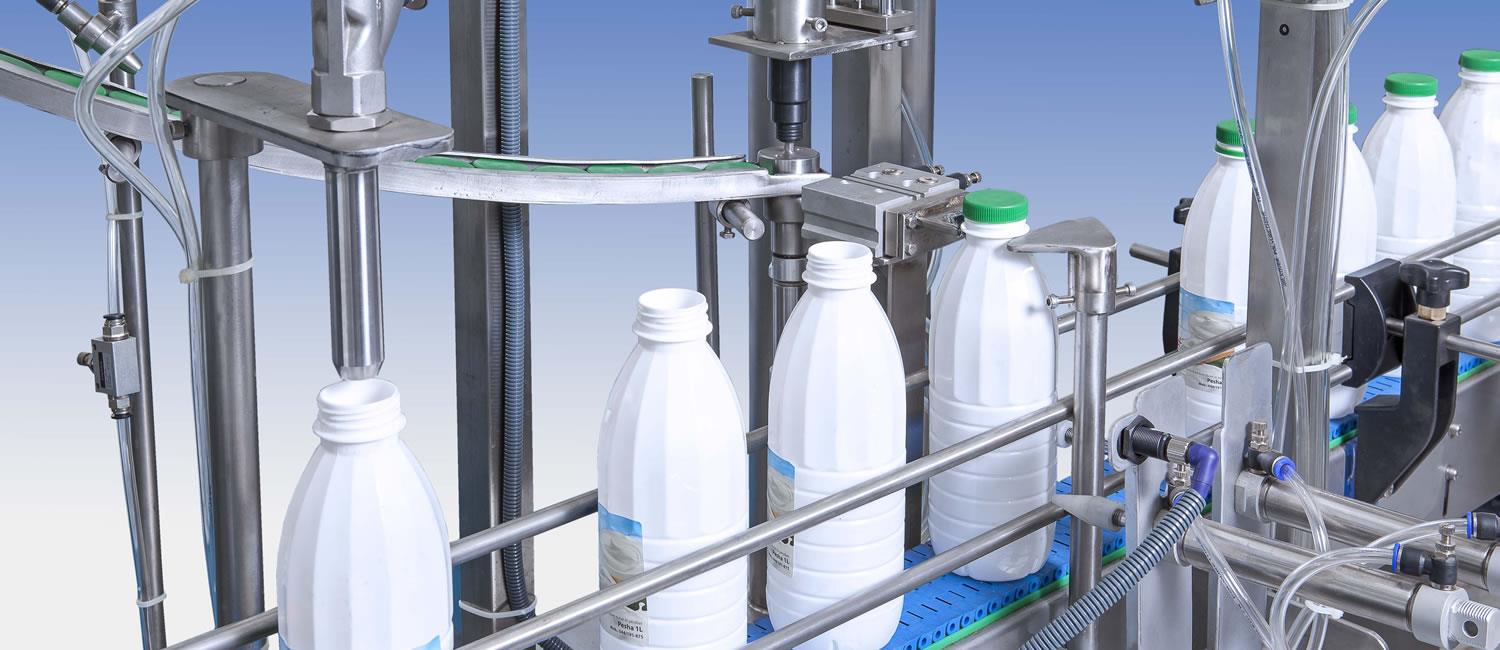

Plastic bottle filling and sealing machine works with a mechanical gearbox and a linear moving system. It is possible to fill variety of plastic bottle sizes. Bottles lined on the conveyor belt are capped at the lid station and accumulated on the output tray ready for packaging.
It is possible to use the plastic bottle filling machine for filling bottles of ayran, milk,juice, kephir, or dressing.

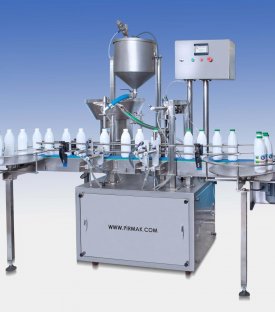

Plastic bottle filling and sealing machine
|
Single Plastic Bottle Filling Sealing Machine |
TECHNICAL SPECIFICATIONS |
|
Model |
PRM-1 / Single Plastic Bottle Filling Sealing Machine |
|
Capacity |
1000 pcs./hr. |
|
Cup Sizes |
500 gr / 1000 gr |
|
Filling Weight |
500 gr / 1000 gr |
|
Control Panel |
PLC Touchscreen |
|
Control Component |
Pneumatic |
|
Air Pressure |
6-8 bars |
|
Machine Voltage |
380 V / 50 -60 Hz |
|
Body chasis |
304 quality Stainless steel |
|
Machine Size |
3000 x 1500 x 1700 mm |
|
Machine Weight |
500 kg |
