Established in 1995, Pirmak Machinery produces filling and labelling machines of medicine, cosmetics, water, bucket, bottle rinsing, paint, fruit juice, milk, honey etc. Pirmak Machinery with its staff, providing exceptional service, works hard in order to keep customers’ contentment by giving priority to their needs and demands and considers the quality as a foremost importance

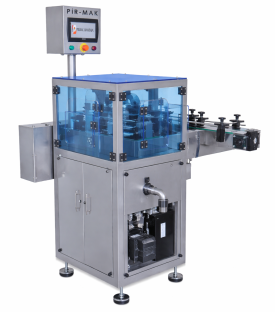

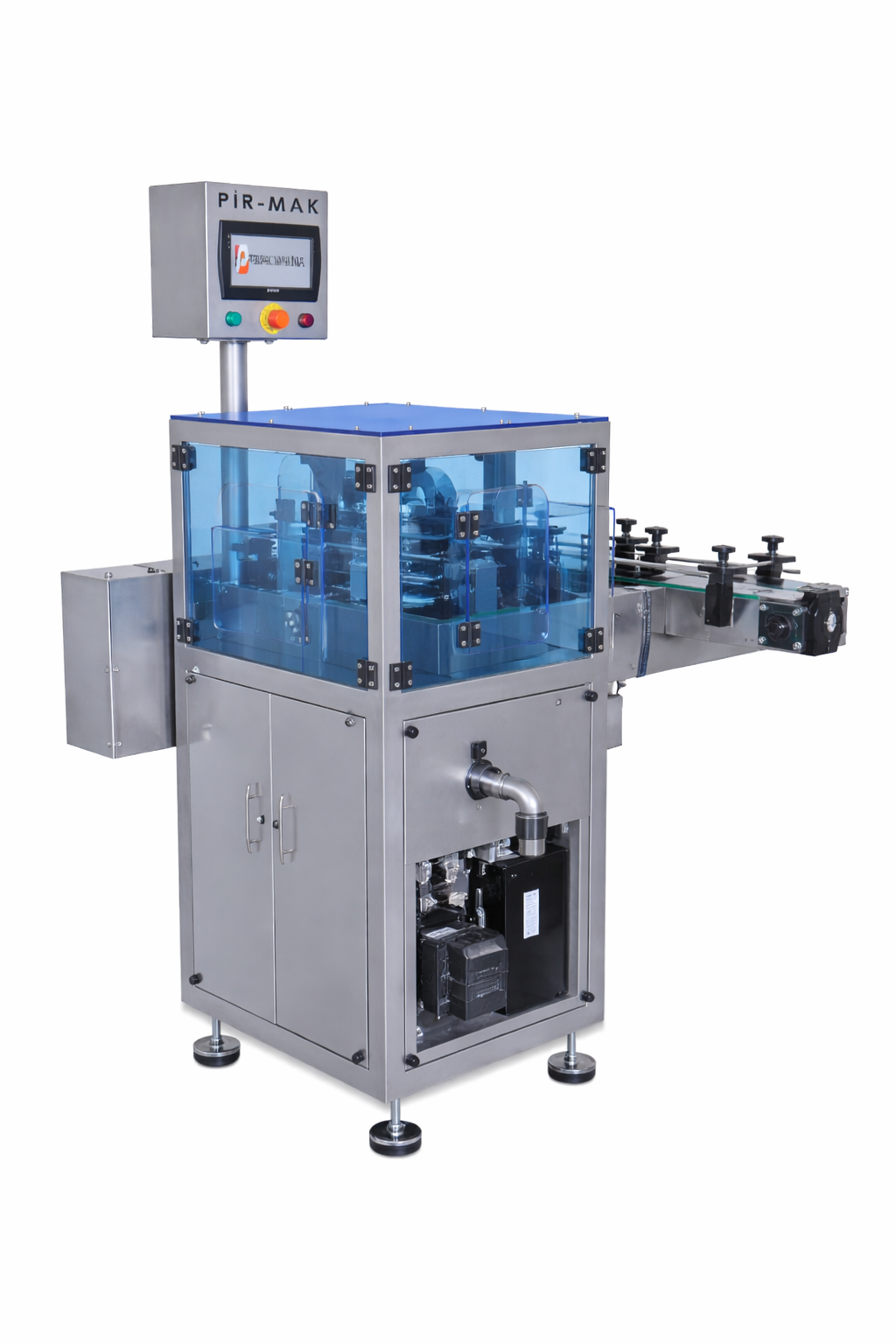

BOTTLE STERILIZATION AND CLEANING MACHINE
|
- TECHNICAL SPECIFICATIONS - |
|
Bottle Sterilization and Cleaning Machine (Optional Steam / HEPA Filter Air) |
|
PURPOSE OF USE |
|
To perform internal cleaning and sterilization processes of empty bottles before filling. |
|
Removal of dust, foreign matter and impurities. OPERATING SYSTEM |
|
* Automatic bottle entry and exit |
|
* Bottle detection system |
|
* Bottle air blowing system |
|
* Invert cleaning system |
|
* Clean air or steam sterilization option |
|
* Outlet |
|
STERILIZATION OPTIONS |
|
HEPA Filter Sterile Air Cleaning |
|
Steam Sterilization (Optional) |
|
Air + Steam Combined System (Optional) |
|
HEPA FILTERED AIR SYSTEM |
|
* HEPA H14 filter class |
|
* 99.995% removal of unhealthy substances |
|
* Oil-free sterile air blowing |
|
* Stainless steel nozzles |
|
* Adjustable air pressure |
|
* Cleaning inside the bottle |
|
STEAM STERILIZATION SYSTEM (OPTIONAL) |
|
* Stainless steel steam nozzles |
|
* Bottle steam sterilization |
|
* Adjustable steam duration |
|
* Low consumption system |
|
* Condensate drainage system |
|
* High hygiene level |
|
MACHINE STRUCTURE |
|
* Complete AISI 304 Stainless Steel |
|
* Hygienic design |
|
* Adjustable bottle Size |
|
*Suitable for different bottle diameters |
|
*Compact square design |
|
AUTOMATION SYSTEM |
|
*PLC control system |
|
*Display panel |
|
*Speed control inverter |
|
*Automatic sensor system |
|
*Fault warning system |
|
OPTIONS |
|
*Steam sterilization |
|
*HEPA filter unit |
|
*Ionized air system |
|
*UV sterilization |
|
*Automatic capping cabinet |
|
*Laminar flow cabinet |
|
CAPACITY |
|
Depending on the product and bottle size: |
|
1000 – 6000 Units / Hour (Optional) |
|
PRODUCTION IS DONE ACCORDING TO YOUR SPECIFICATIONS. |
