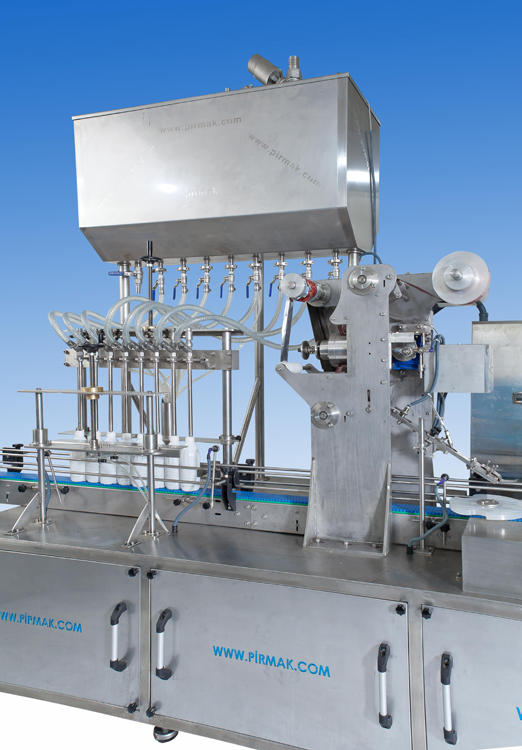

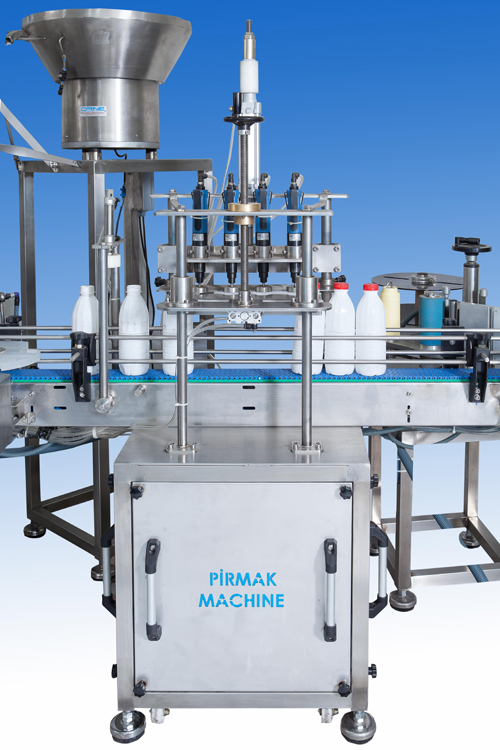

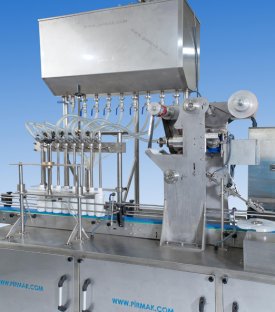

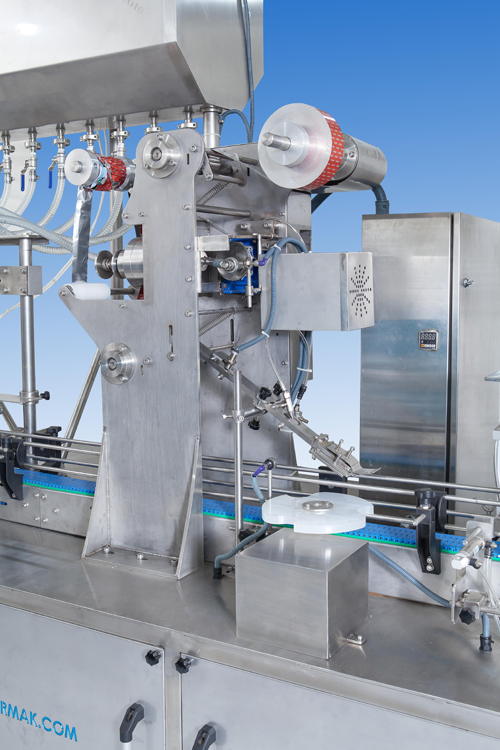

Ayran filling machine works with a mechanical gearbox linearly and a linear pallet system. It is possible to fill variety of plastic bottle sizes. Bottles lined on the conveyor belt are filled by 8 nozzles volumetric suction press. At the next station the bottles are capped with plastic lids. Bottles carried on the conveyor belt are labelled and prepared for packaging after accumulation on the output tray. It is possible to use the Ayran filling machine as milk, juice, or kephir filling machine.
Ayran Cup Filling Machine
|
TECHNICAL SPECIFICATIONS
|
Model
|
PRM-8 LN/ Plastic Bottlle Filling, Capping and Labelling Machine
|
Capacity
|
4000 pcs./hr.
|
Cup Sizes
|
500 gr / 1000 gr
|
Filling Weight
|
500 gr / 1000 gr
|
Control Panel
|
PLC Touchscreen
|
Control Component
|
Pneumatic
|
Air Pressure
|
6-8 bars
|
Machine Voltage
|
380 V / 50-60Hz
|
Body chasis
|
304 quality Stainless steel
|
Machine Size
|
6500 x 2400 x 2600 mm
|
Machine Weight
|
950 kg
|
