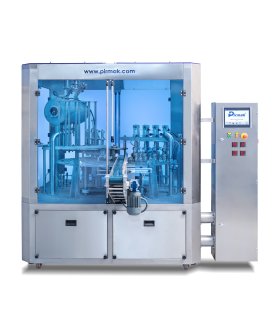

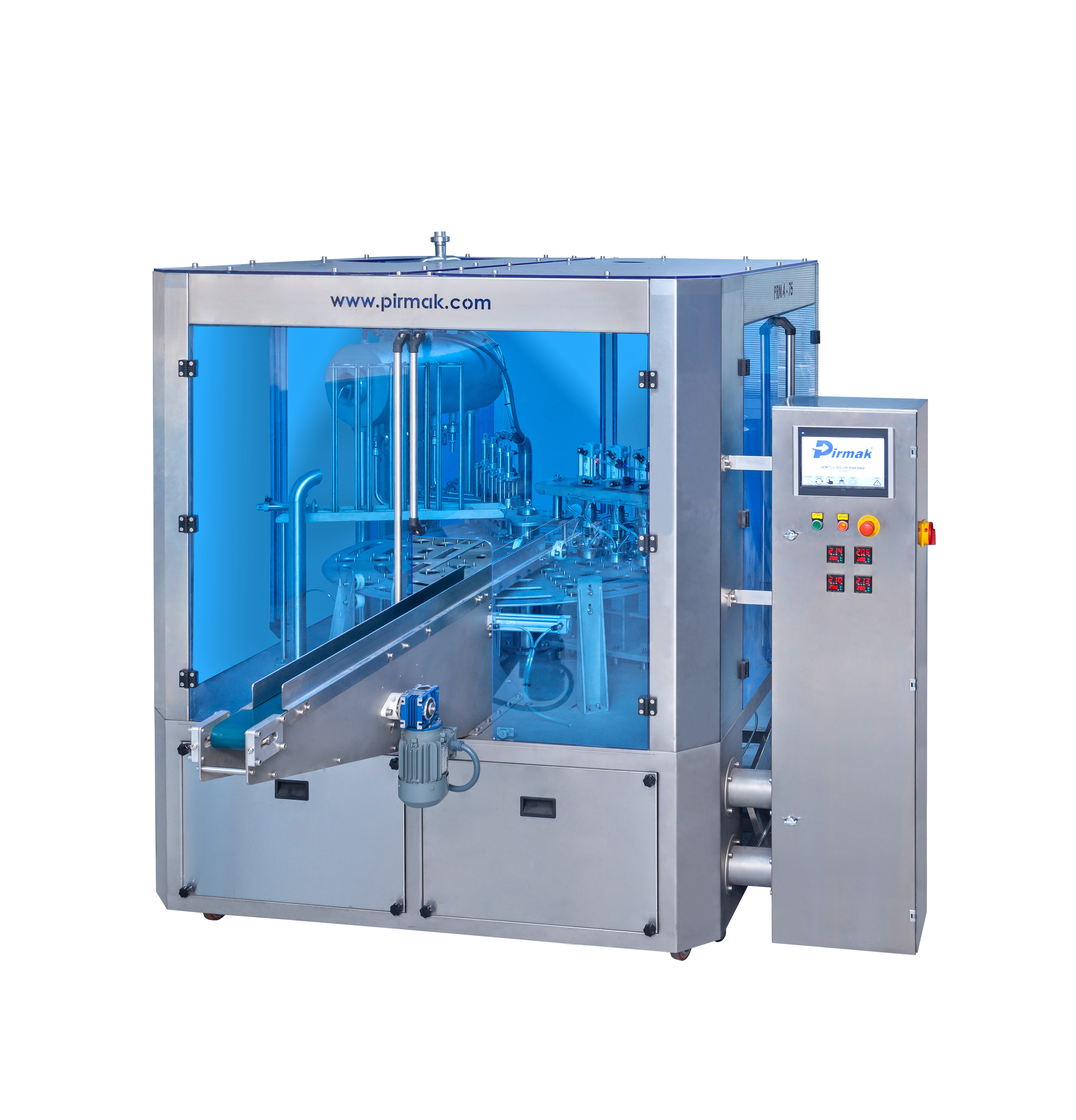

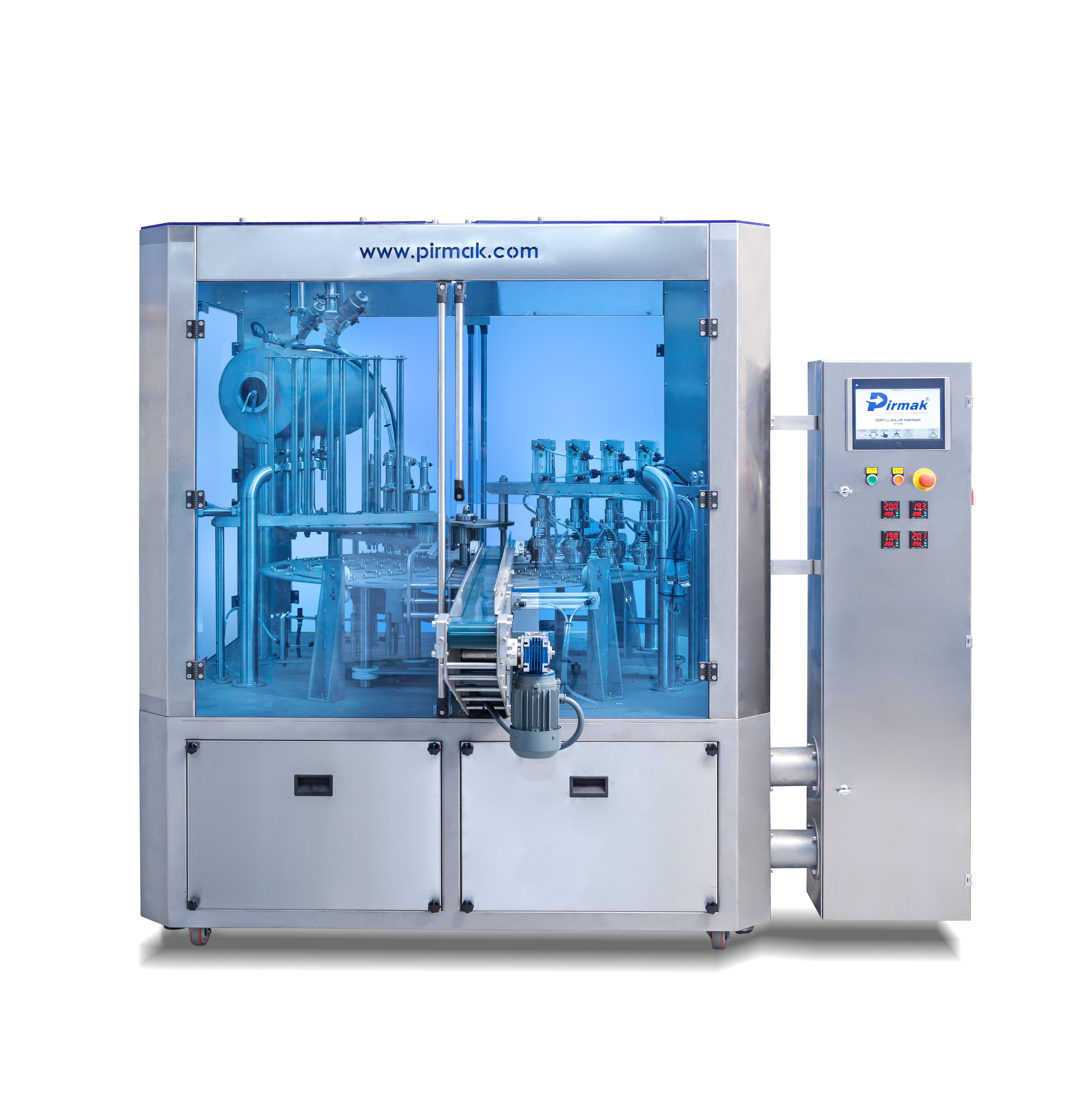

CUPS AYRAN FILING AND SEALING MACHINE

CUPS AYRAN FILING AND SEALING MACHINE


CUPS AYRAN FILING AND SEALING MACHINE

KAPASİTE

CAPACITY

4000 Adet/Saat

4000 Pieces/Hour

KAP EBATLARI

CUPS SIZES

75ø -95

75ø-95

DOLUM GRAMAJLAR

FILLING WEIGHT

200 ml-500ml

200 ml-500ml

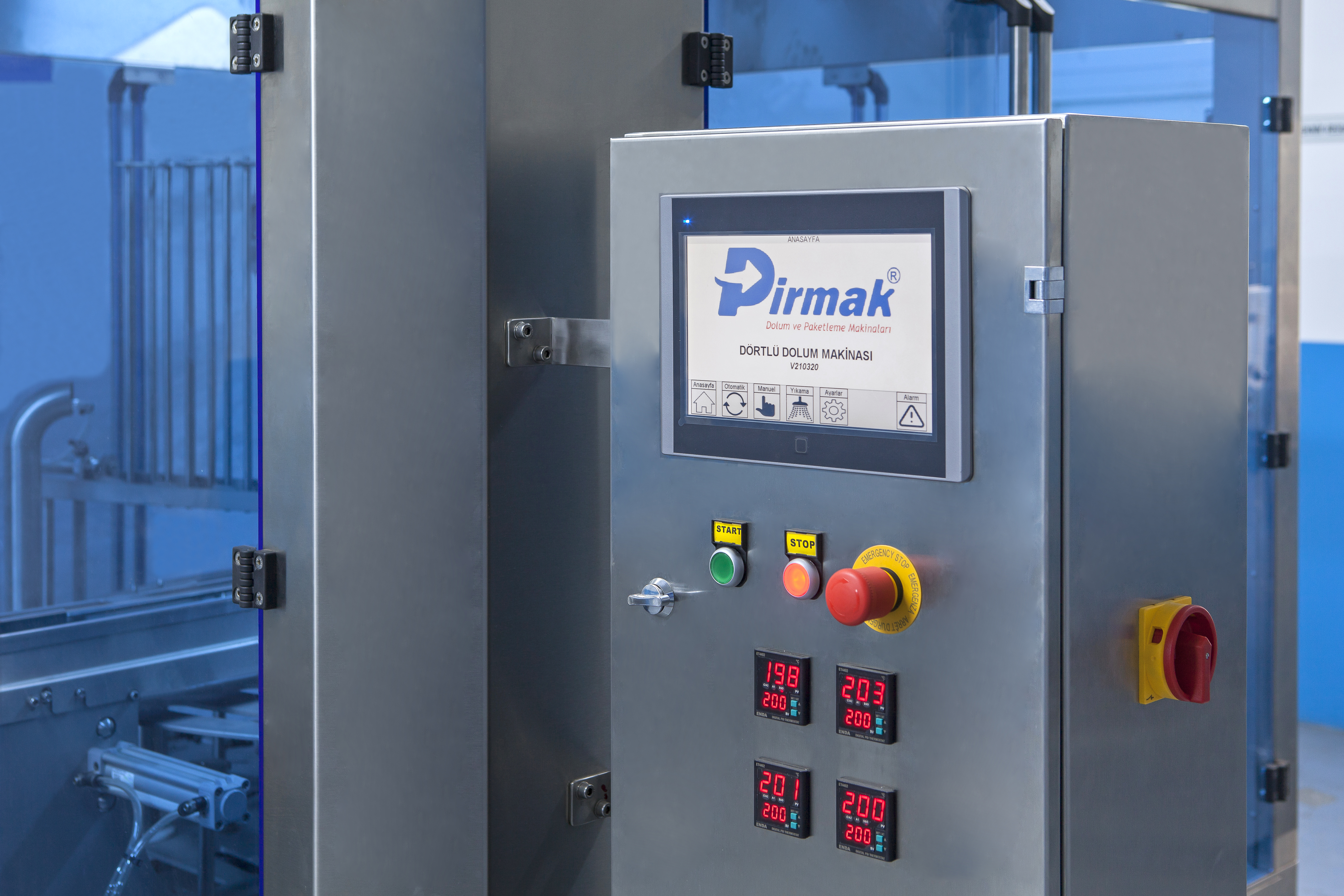

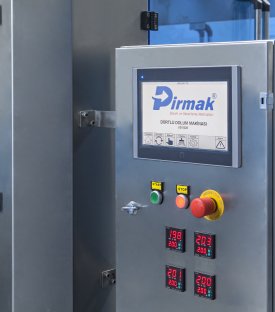

KONTROL PANELİ

CONTROL PANEL

PLC Dokunmatik Ekran Kontrollü

Controlled with PLC touch screen

KONTROL AKSAMİ

CONTROL COMPONENTS

Pnömatik Kontrol

Pneumatic Control

HAVA BASINCI

AIR PRESSURE

6-8 bar

6-8 bar

MAKİNA GERİLİMİ

MACHINE VOLTAGE

380 V / 50 Hz

380 V / 50 Hz

GÖVDE ÖZELLİKLERİ

BODY FEATURE

304 Kalite paslanmaz çelik

304 Quality stainless steel

MAKİNA EBATLARI

MACHINE DIMENTIONS

1680 x 1900 x 1850 mm

1680 x 1900 x 1850 mm

MAKİNA AĞIRLIĞI

MACHINE WEIGHT

450 Kg

450 Kg

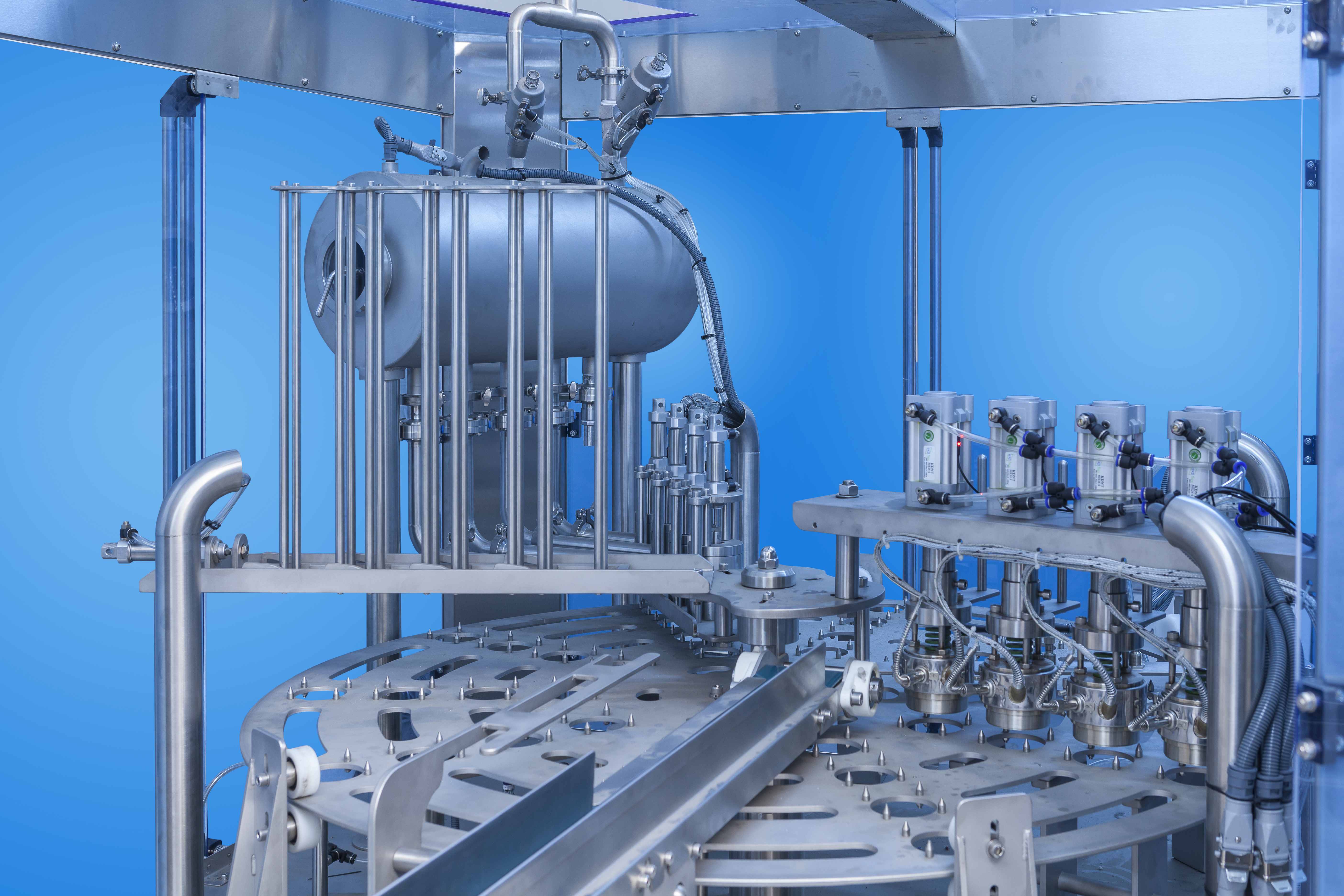

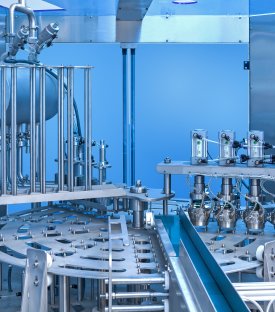

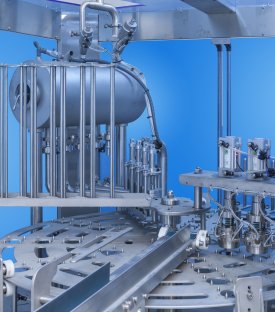

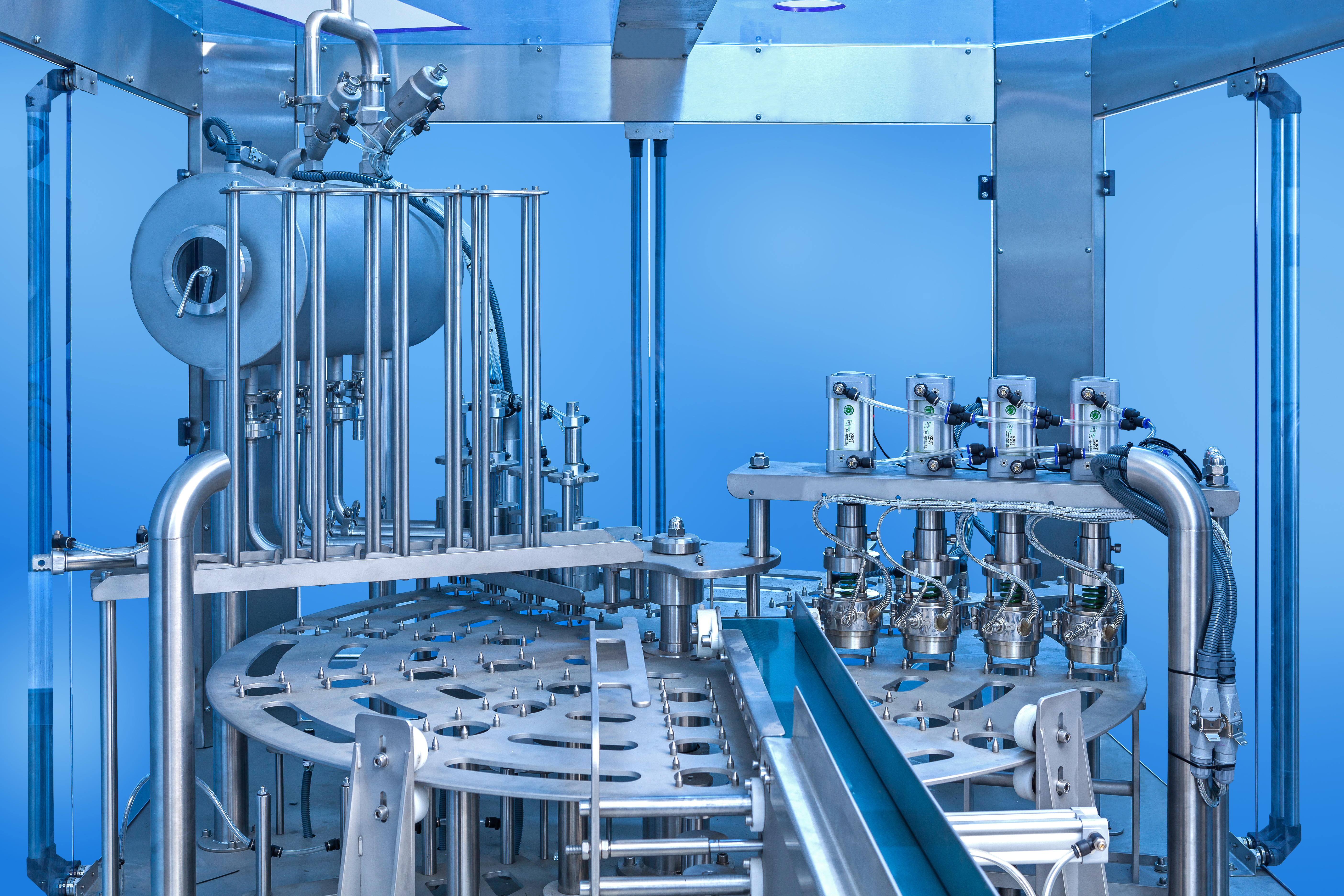

Our machine consists of six stations. It works with pneumatic control as a Rotary System. First, the glasses are manually fed into the magazines on the machine. At the first station, the glasses are dropped onto the star with the help of a piston. At the second station, the cups are filled to the desired weight. At the third station, aluminum foil is placed on the rim of the filled glasses. At the fourth station, the filled and foiled glasses are glued to the foil glass in a way that does not leak, with the sealing head heated by the resistance. At the fifth station, the date is stamped on the glasses that have been foil sealed. At the sixth station, all finished products are automatically removed onto the conveyor belt. The products are ready to be packaged.





Machine dimensions
